AUDLEY Pro Dual-Station Heat Transfer Machine for DTF Printing – High-Precision, Semi-Automatic Press with Pneumatic Adjustment and Infrared Locator

The Audley YD-4060(D) Pro Semi-Automatic Dual-Station Heat Transfer Machine is the ultimate tool for businesses specializing in Direct-to-Film (DTF) printing. Designed with precision and efficiency in mind, this advanced machine supports pneumatic operation (requires external air compressor, not included) and offers features tailored for vibrant and durable DTF transfers.

Top Features to Elevate Your DTF Printing

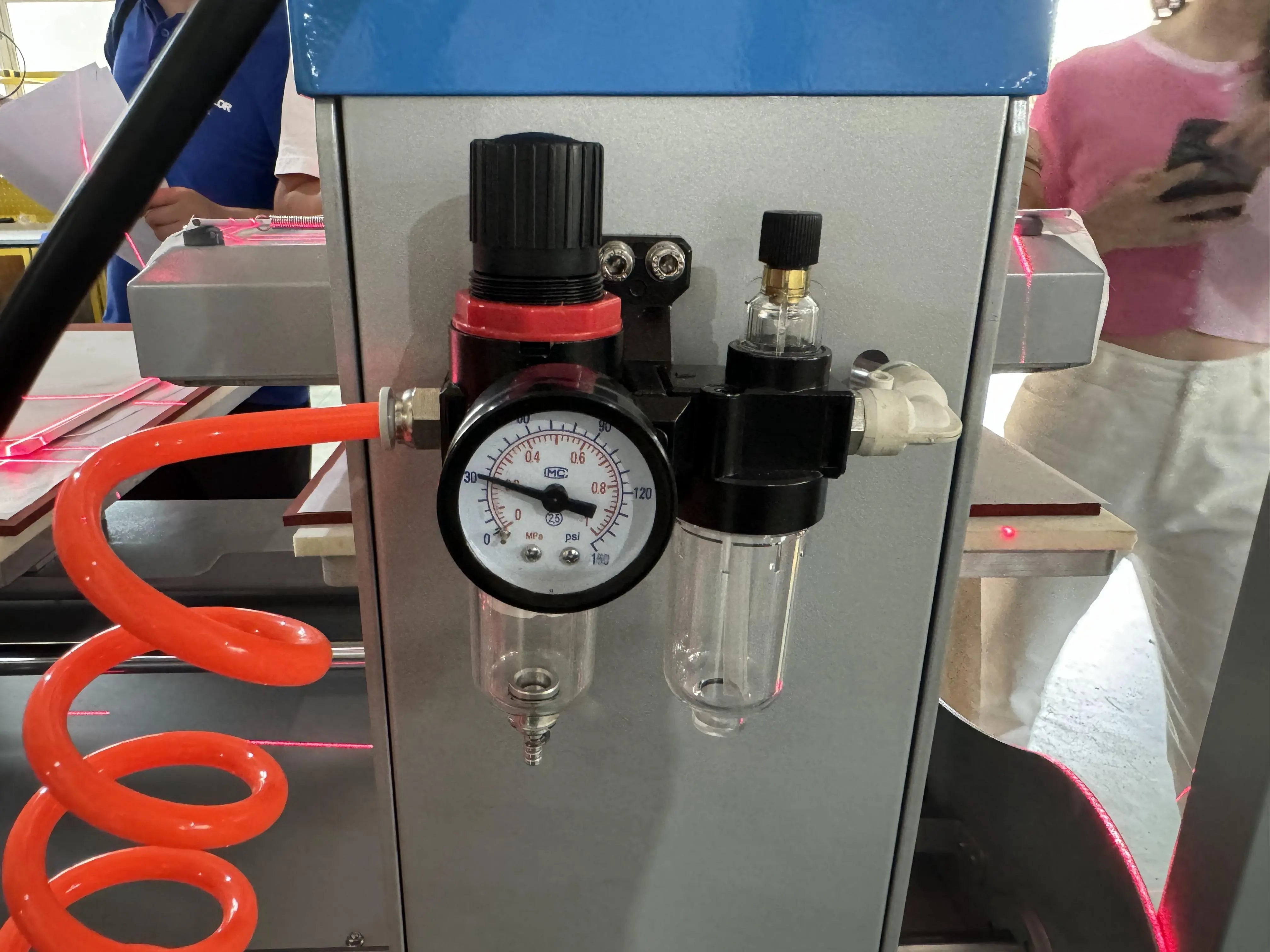

• Pneumatic Pressure Adjustment (Air Compressor Required): Delivers even pressure distribution for consistent, high-quality transfers. Automates pressure adjustments to reduce manual effort and operator fatigue.

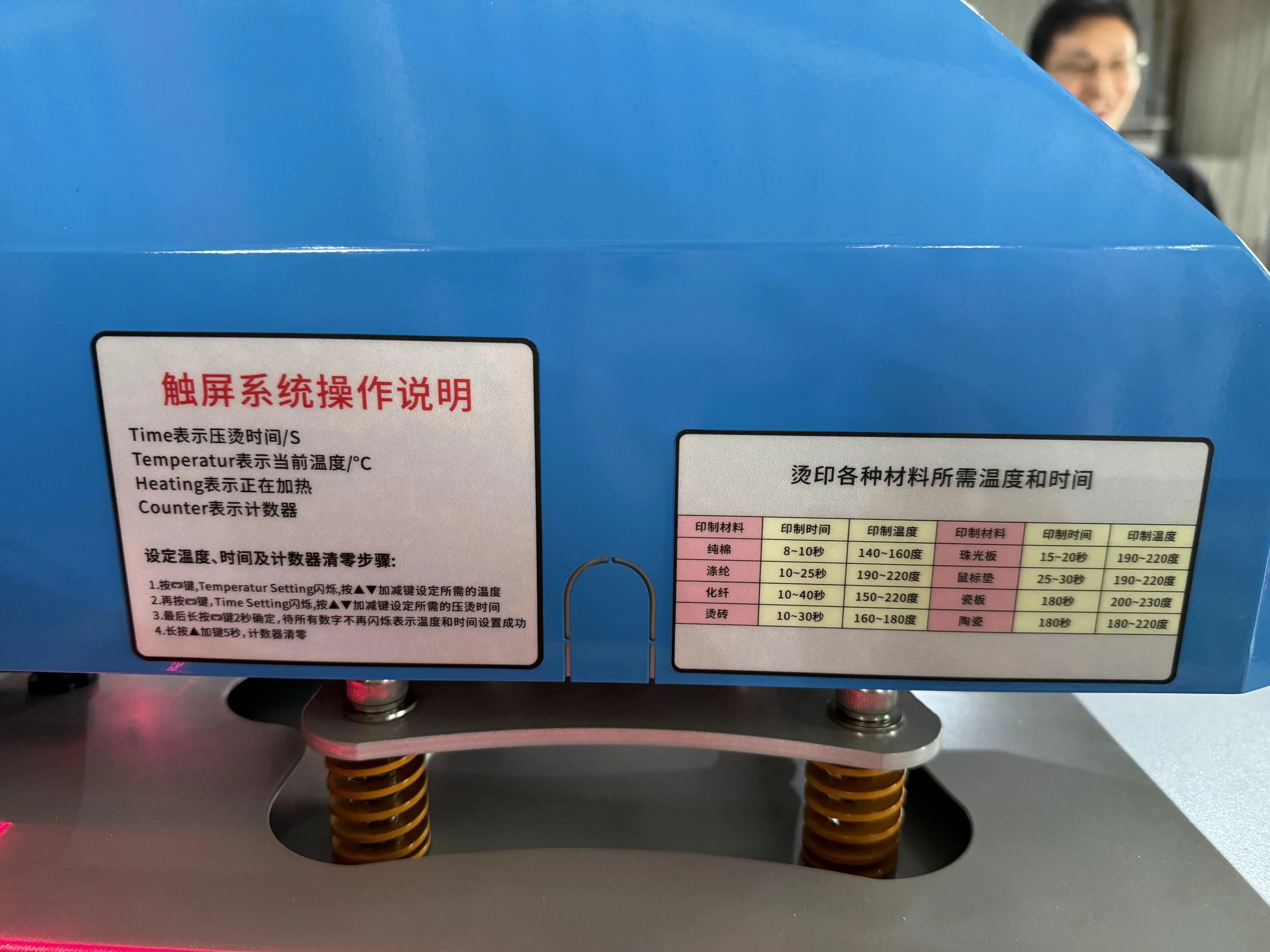

• Intelligent Touch-Screen Control Panel: Simplifies operation with precise control over time, temperature, and pressure settings.

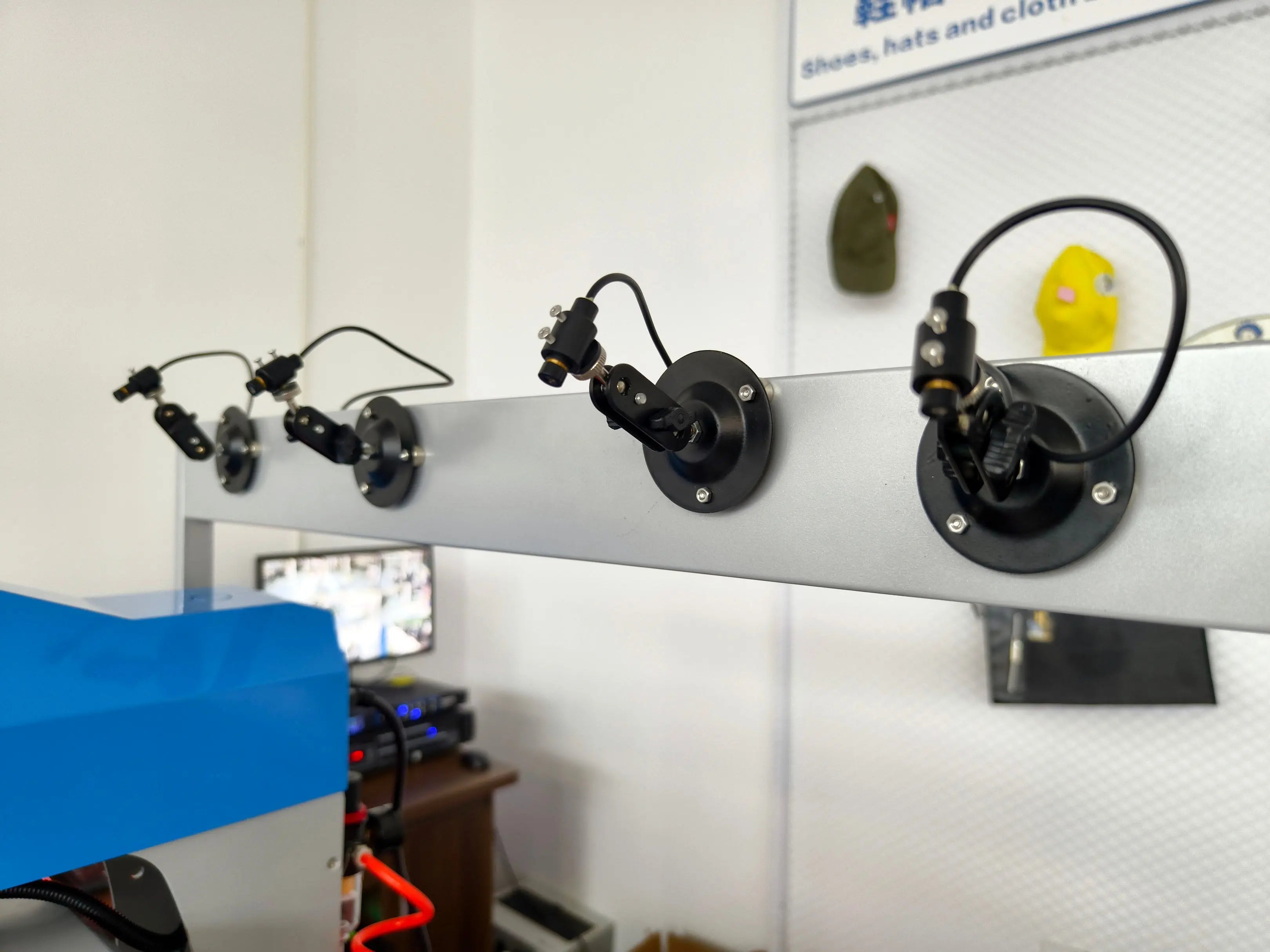

• Infrared Locator (Optional): Ensures perfect alignment for transfers, reducing errors and enhancing consistency.
• Stainless Steel Springs: Built for durability, maintaining even pressure over time, even in high-volume operations.

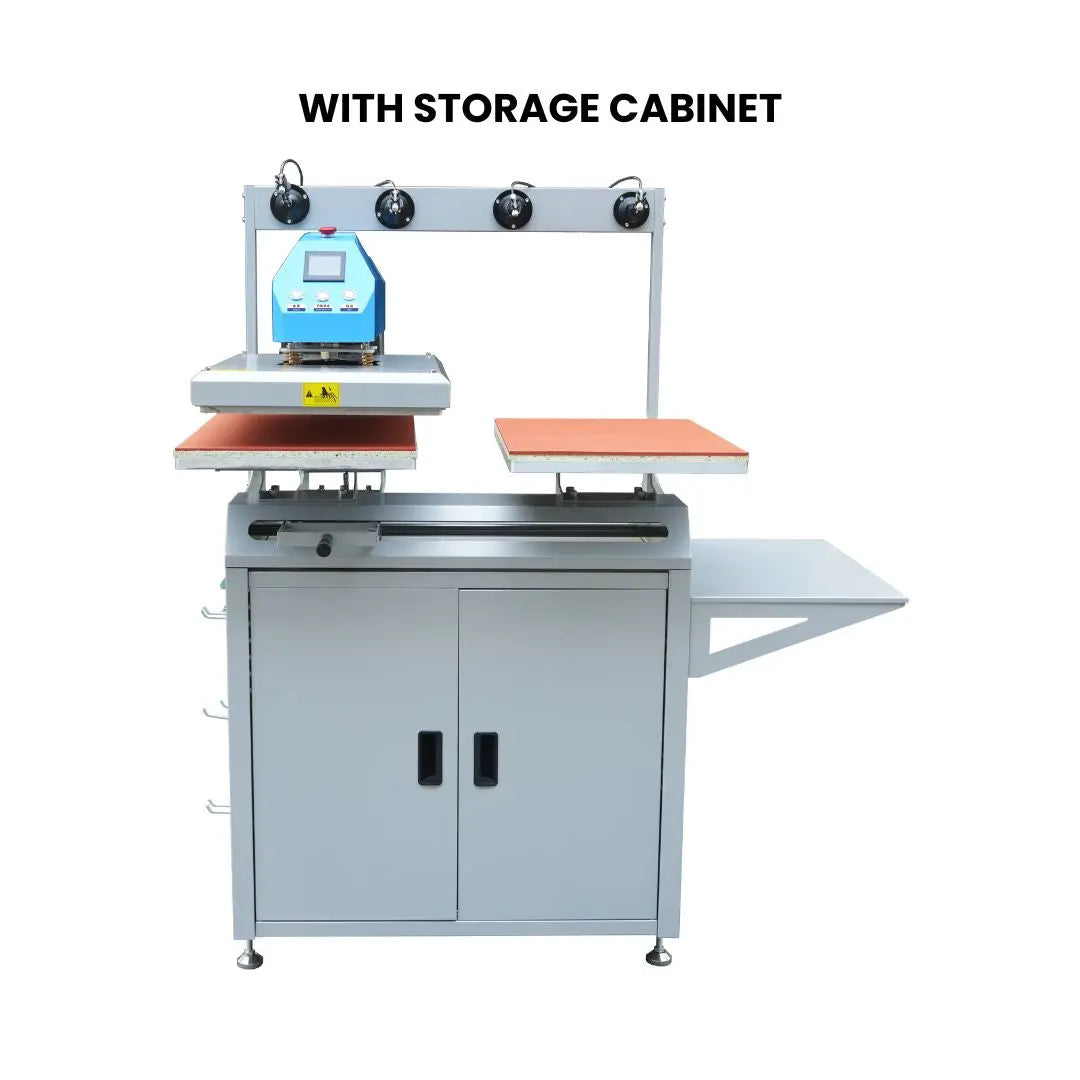

• Adjustable Side Shelf: Offers additional space for prepping and organizing film sheets, streamlining your production process.

Technical Parameters for DTF Printing Excellence

• Model: YD-4060(D) Pro
• Feeding Width: 16″ × 24in (40 x 60 cm²), suitable for a variety of DTF film sizes.
• Time Range: Adjustable from 10 to 999 seconds for precise adhesion control.
• Temperature Range: 32°F – 750°F (0-399°C), ideal for transferring vibrant, long-lasting prints onto various fabrics.

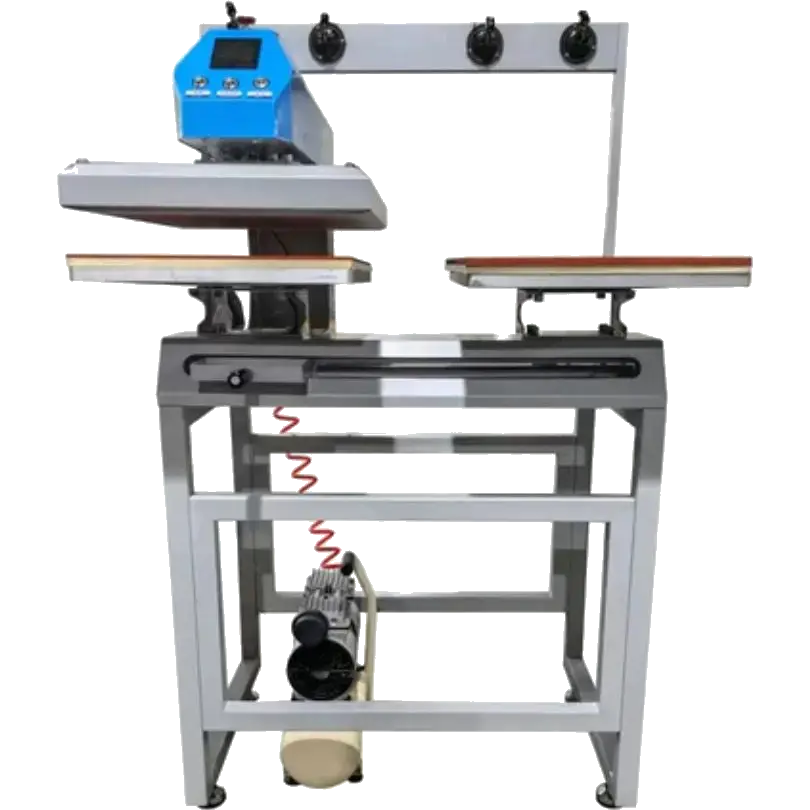

• Pressure Adjustment Method: Pneumatic (requires external air compressor, not included)
• Voltage: 110V 50-60Hz, compatible with standard power sources.
• Power: 270W, combining energy efficiency with reliable performance.
• Machine Dimensions: 59 × 32 × 55in (149 x 80 x 140cm)
• Package Size: 48 × 34 × 30in (122 x 85 x 77cm)
• Weight: 188lbs (85 kg), providing a stable setup for consistent, high-volume production.

Why the YD-4060(D) Pro is Perfect for DTF Printing

For businesses aiming to elevate their DTF printing workflow, the YD-4060(D) Pro offers the precision, speed, and reliability needed for success. Its dual-station setup increases productivity by allowing simultaneous loading and heat transfer, reducing downtime and boosting throughput.

While an air compressor is required for operation, the machine’s intelligent features—like its digital control panel and robust spring system—ensure every transfer is vibrant, smooth, and consistent. Its ergonomic design makes it ideal for continuous, high-volume use.
