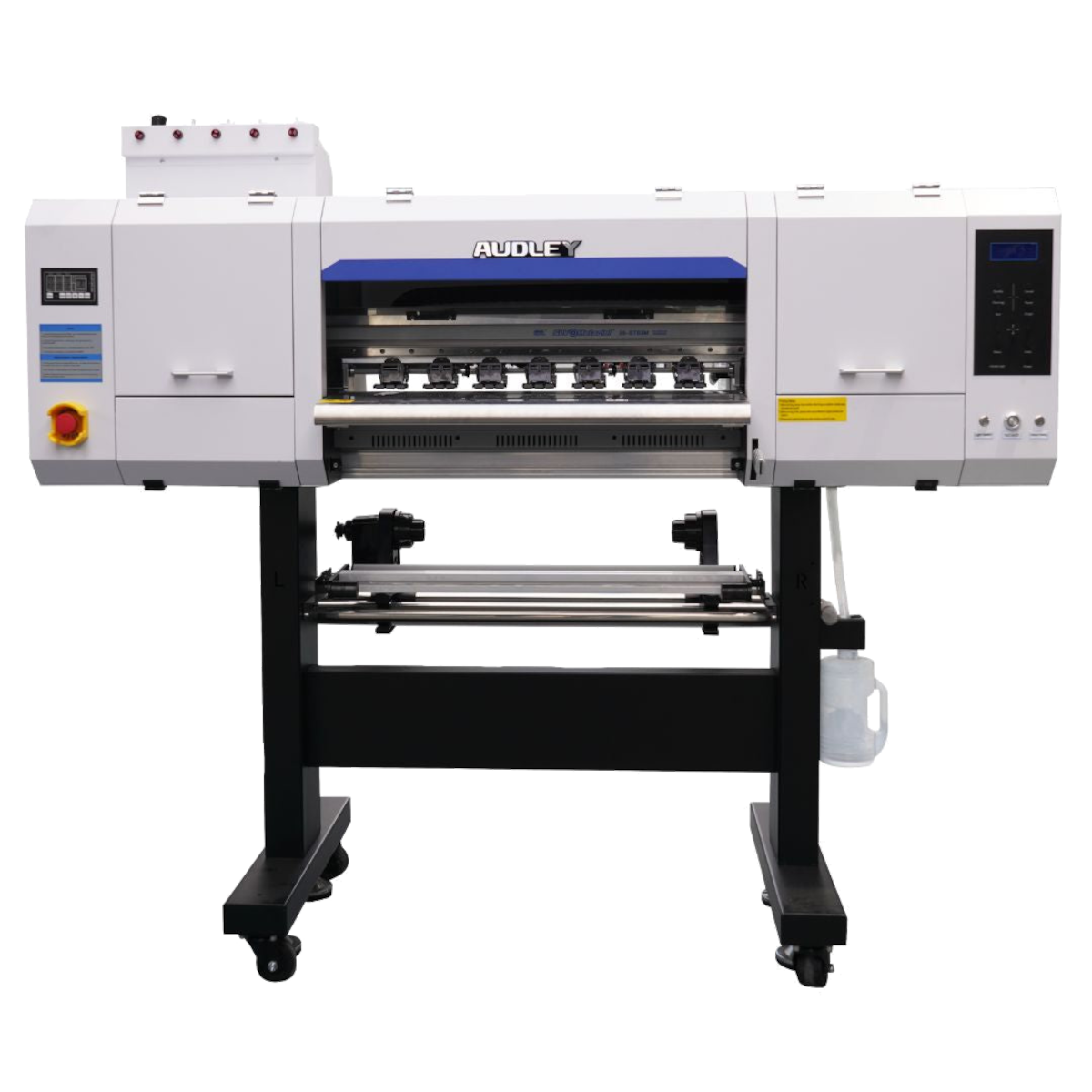

Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer

The AUDLEY S8074-3 DTF Printer, powered by 4 Epson I3200-A1 print heads, combined with the DF-800L(A) Powder Shaker, offers unmatched precision, speed, and quality for textile printing. This powerful duo guarantees consistent, vibrant prints with efficient powder application and curing to meet high-demand production needs.

In-Depth Product Features:

1. AUDLEY S8074-3 DTF Printer Details:

• Model: S8074-3

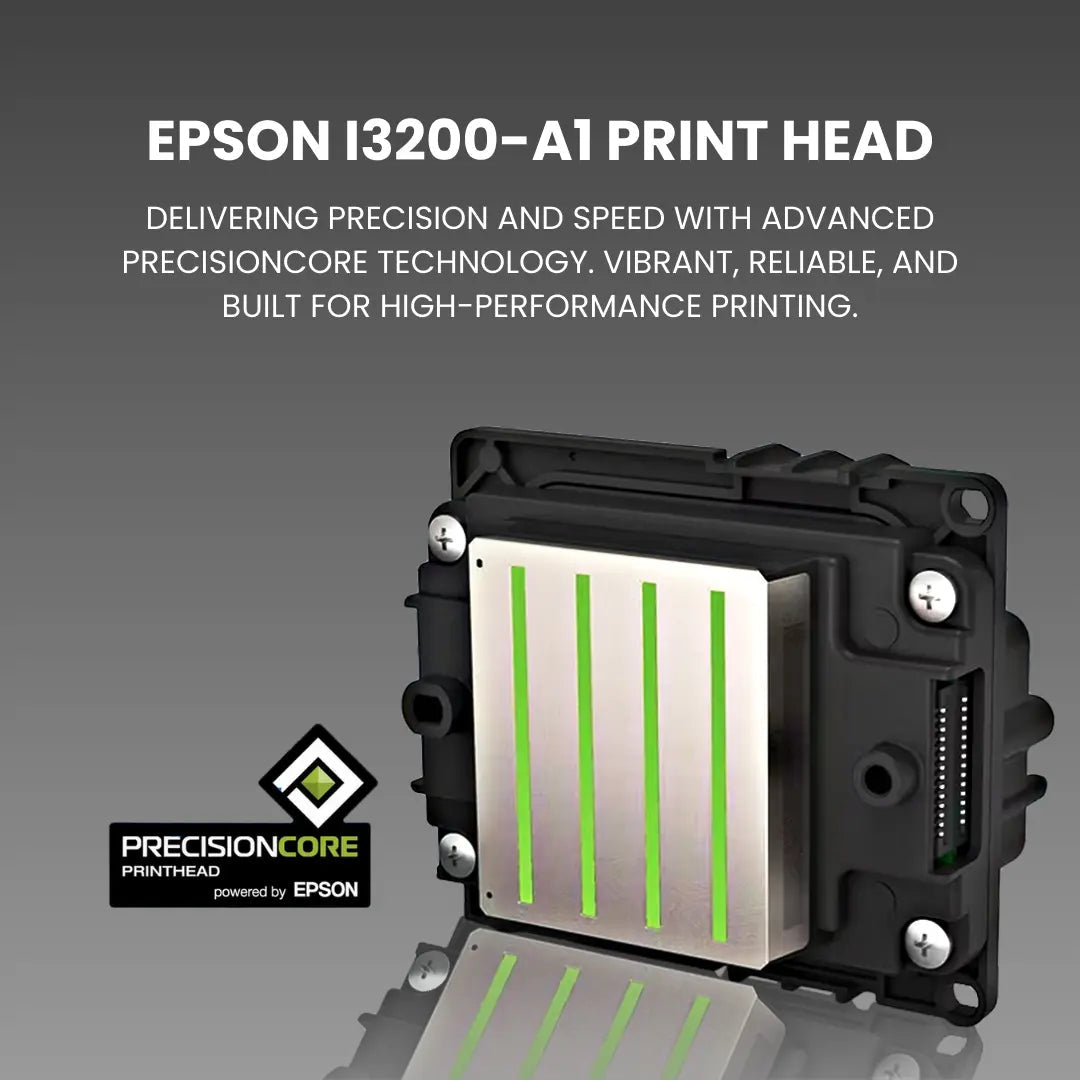

• Print Head Configuration: 4 Epson I3200-A1 print heads for enhanced color depth and accuracy.
• Printing Speed Options:

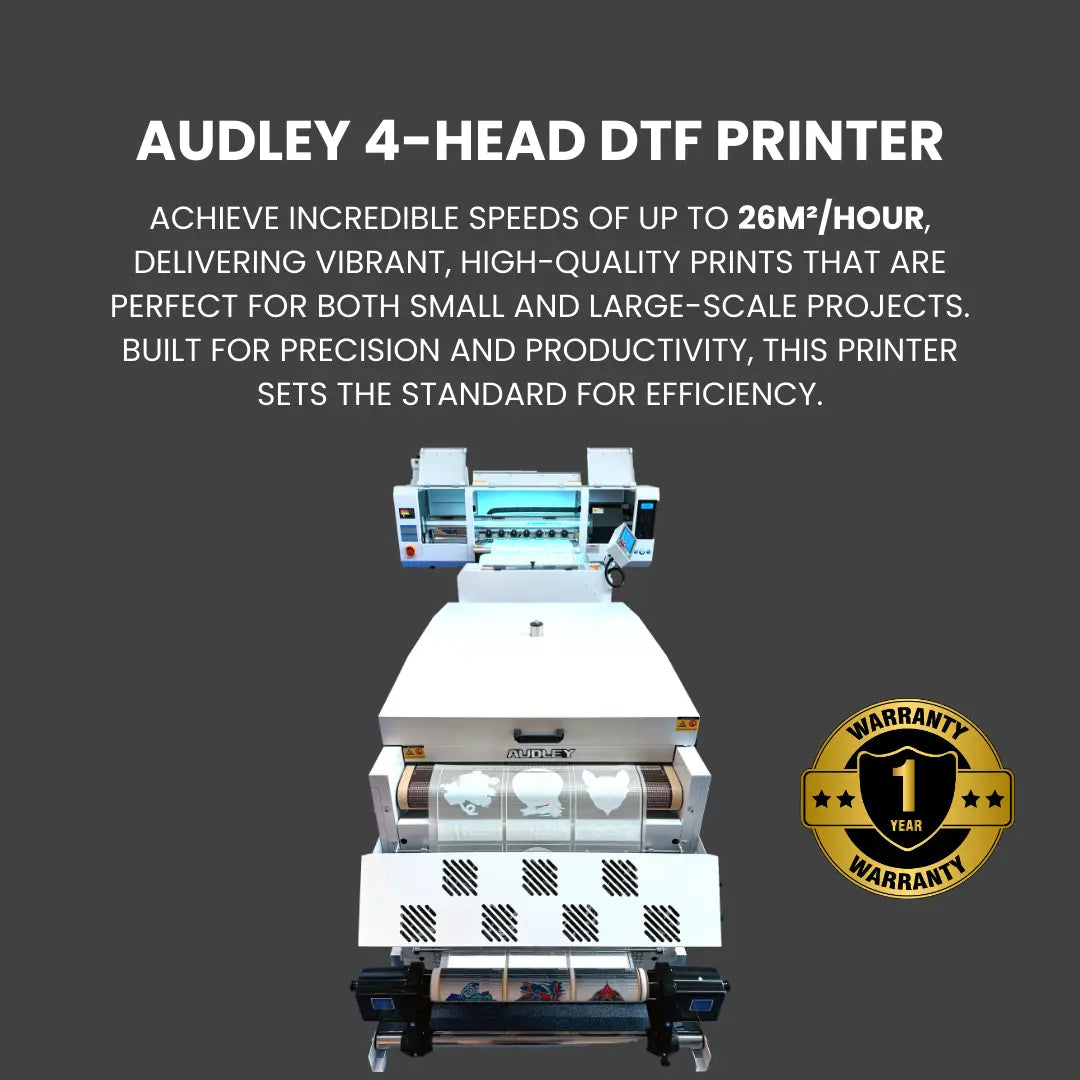

• 4PASS: 26 m²/h for high-speed production.
• 6PASS: 18 m²/h for a balance between speed and print quality.
• 8PASS: 12 m²/h for superior detail and precision.
• Advanced Precision Features:

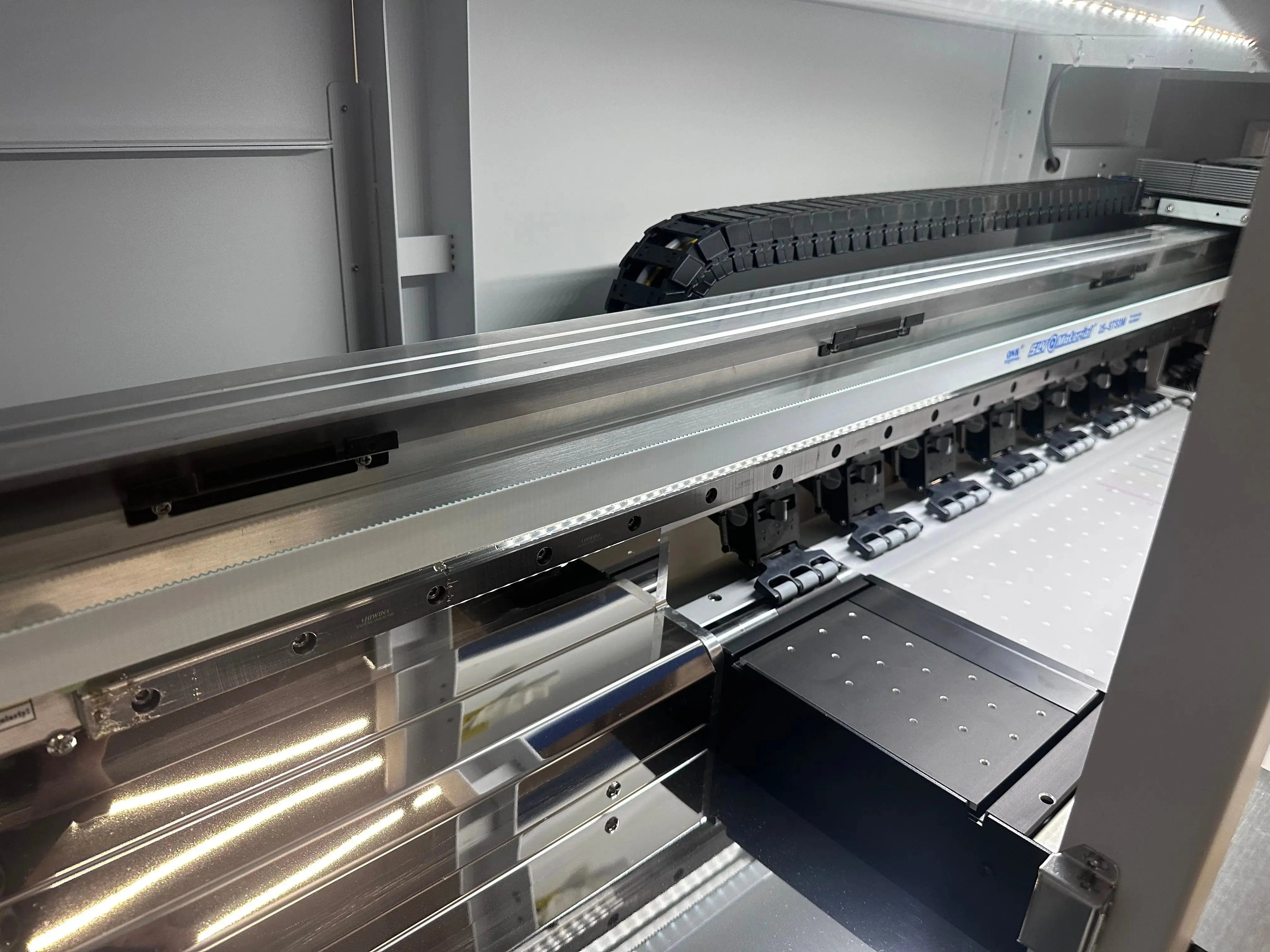

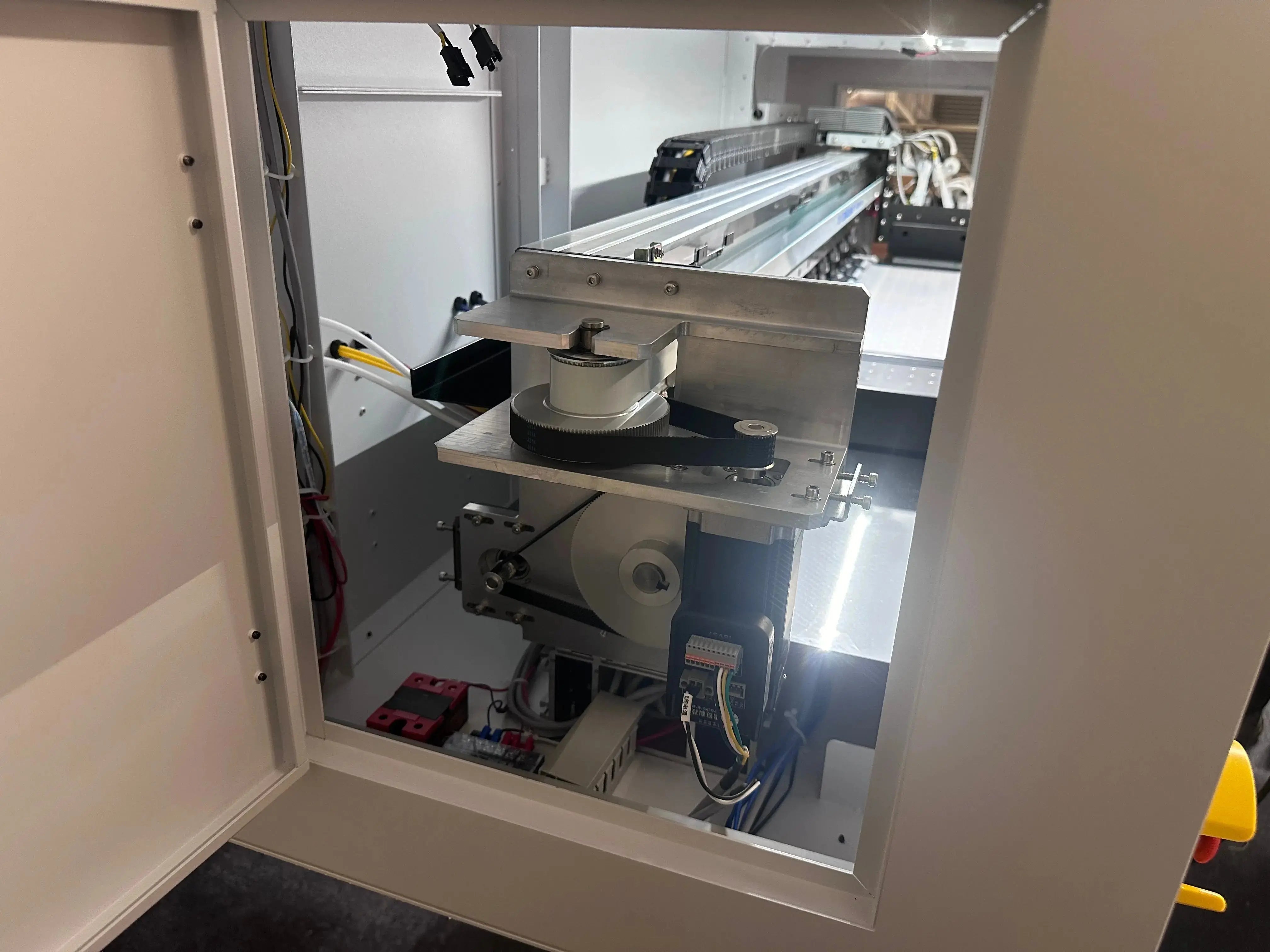

• Material Pinch Roller & Pressing Wheel: Ensures even tension and smooth material feeding.
• High-Precision Ink Station: Maintains optimal ink flow and prevents clogging.
• Temperature Sensor: Monitors heat to maintain ideal operating conditions.

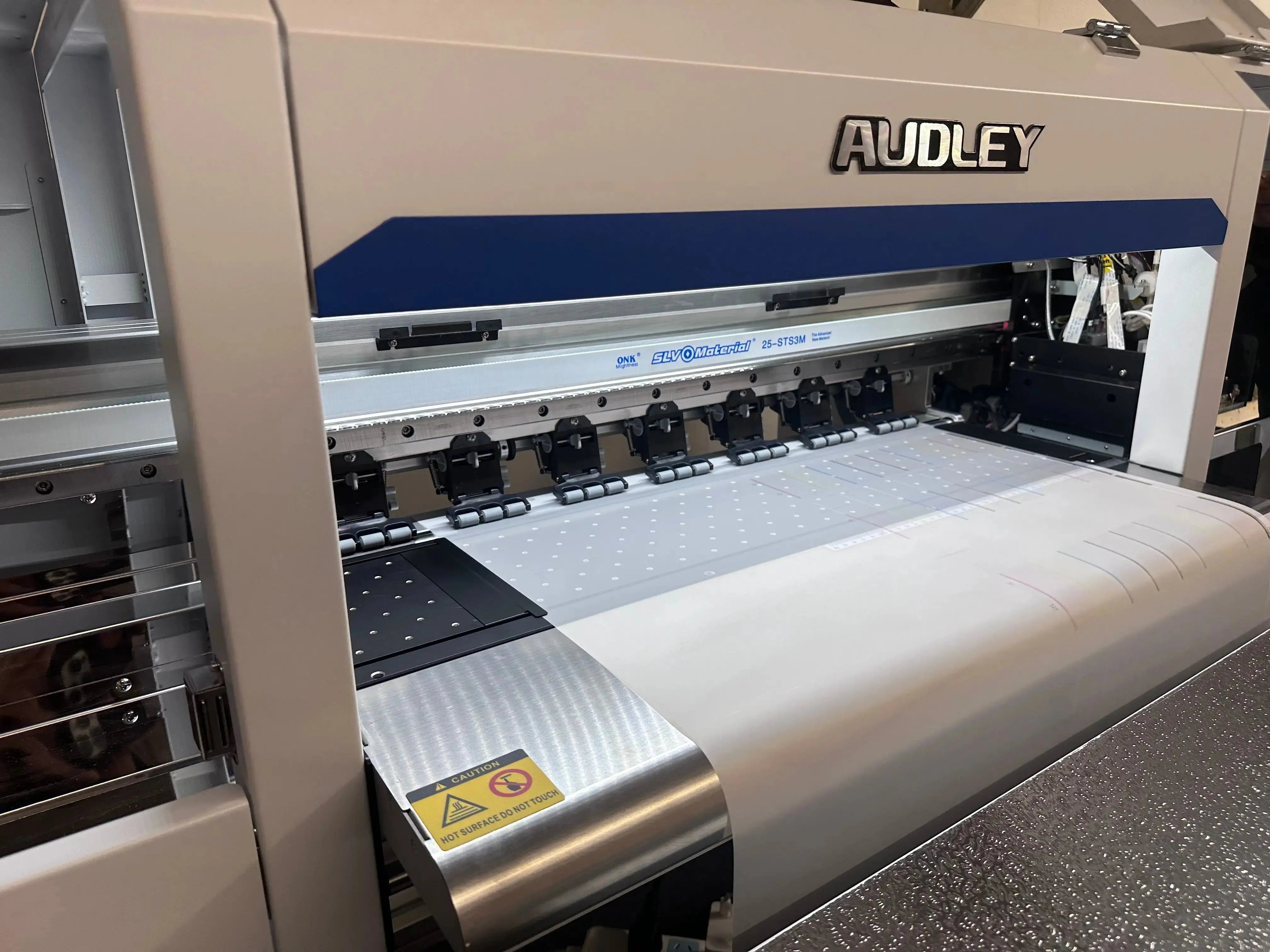

• Teflon Belt Moving System with Suction: Keeps media steady for flawless printing.
• Working Size: Supports printing widths up to 24in (60cm)

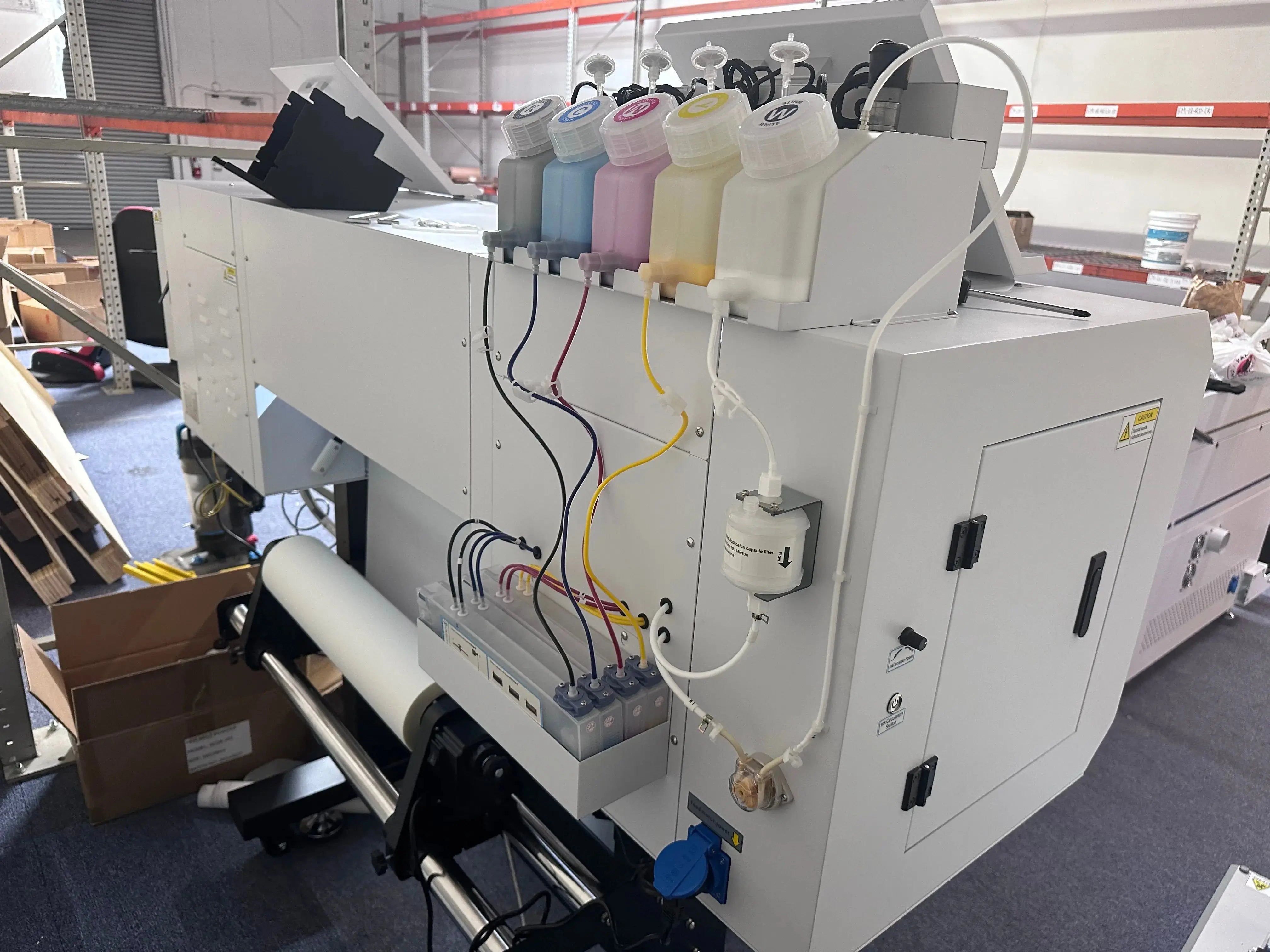

• Ink Type: Compatible with pigment ink (CMYK + White) for durable and vivid prints.
• Voltage & Power: Operates on 220V, 50/60HZ with a power requirement of 1500W.
• Dimensions & Weight: Measures 91 × 30 × 35 in (230 x 76 x 87cm) and weighs 600lbs (275 kg)
• Ideal Working Environment: Recommended temperature range of 59°F – 86°F (15°C-30°C) for optimal operation.

2. Control Board Specifications:

• Hoson Board: Ensures stable, reliable performance with high-speed processing, essential for continuous and demanding printing tasks.

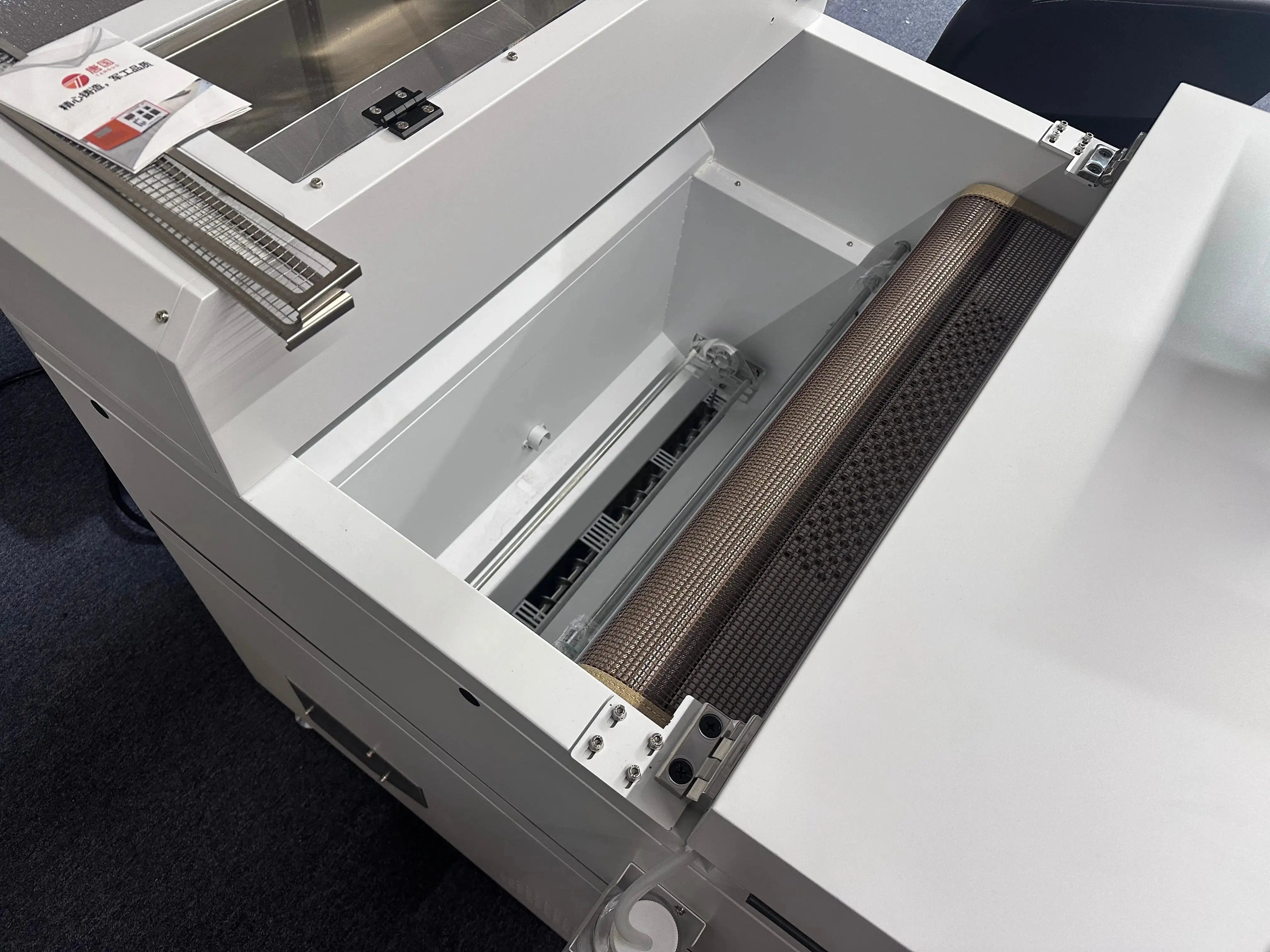

3. DF-800L(A) Powder Shaker Details:

• Model: DF-800L(A)
• Working Width: Accommodates media widths up to 24in (60cm)
• Automated Powder Application: Evenly distributes adhesive powder across printed films, eliminating manual work and ensuring consistency.
• Efficient Curing System:
• Heating Tubes: 10 pieces (805mm each, 500W/pcs) for uniform and rapid curing.
• Power & Dimensions:
• Power Consumption: 5800W for effective powder curing and drying.
• Dimensions: 91 × 45 × 50in (231 x 115 x 128cm); Weight: 840lb (381kg)

Why Choose This DTF Combo?

• Superior Print Quality: Achieve outstanding color vibrancy and image clarity with the 4-pass, 6-pass, and 8-pass speed options.
• Efficient Production: The powerful shaker applies powder uniformly, reducing errors and enhancing transfer quality.
• User-Friendly Operation: Simplified controls and automated functions make this combo suitable for both new and experienced operators.
• Reliable & Durable: Both the printer and shaker are built for consistent, heavy-duty use, ensuring long-term productivity.

Warranty

·       1-Year Full Coverage Warranty (Excluding Print Heads): Protects all major machine components (excluding print heads), giving you peace of mind and ensuring minimal downtime for your production.

Software

Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.

Support

·       18-Hour U.S.-Based Online Support: Our knowledgeable support team is ready nearly around the clock to assist you, minimizing downtime and keeping production on track. One Complimentary On-Site Repair: Within the warranty period, we offer a one-time no-cost on-site repair to address any eligible issues, maximizing machine uptime for your business.

Installation & Training Options

·       Free Online Setup Resources: Access a library of video tutorials and step-by-step guides designed to make setup easy, even for first-time users.

·       On-Site Installation & Training ($500): For a one-time fee, we provide comprehensive on-site setup and personalized training to ensure your team can operate the printer confidently and efficiently from day one.

Perfect for garment printing shops, custom merchandise creators, and large-scale production facilities aiming to provide top-quality prints efficiently.

Invest in the AUDLEY S8074-3 DTF Printer and DF-800L(A) Powder Shaker today and elevate your DTF printing capabilities to new heights!

Printer Model: S8074-3

Powder Shaker Model: DF-800L(A)
